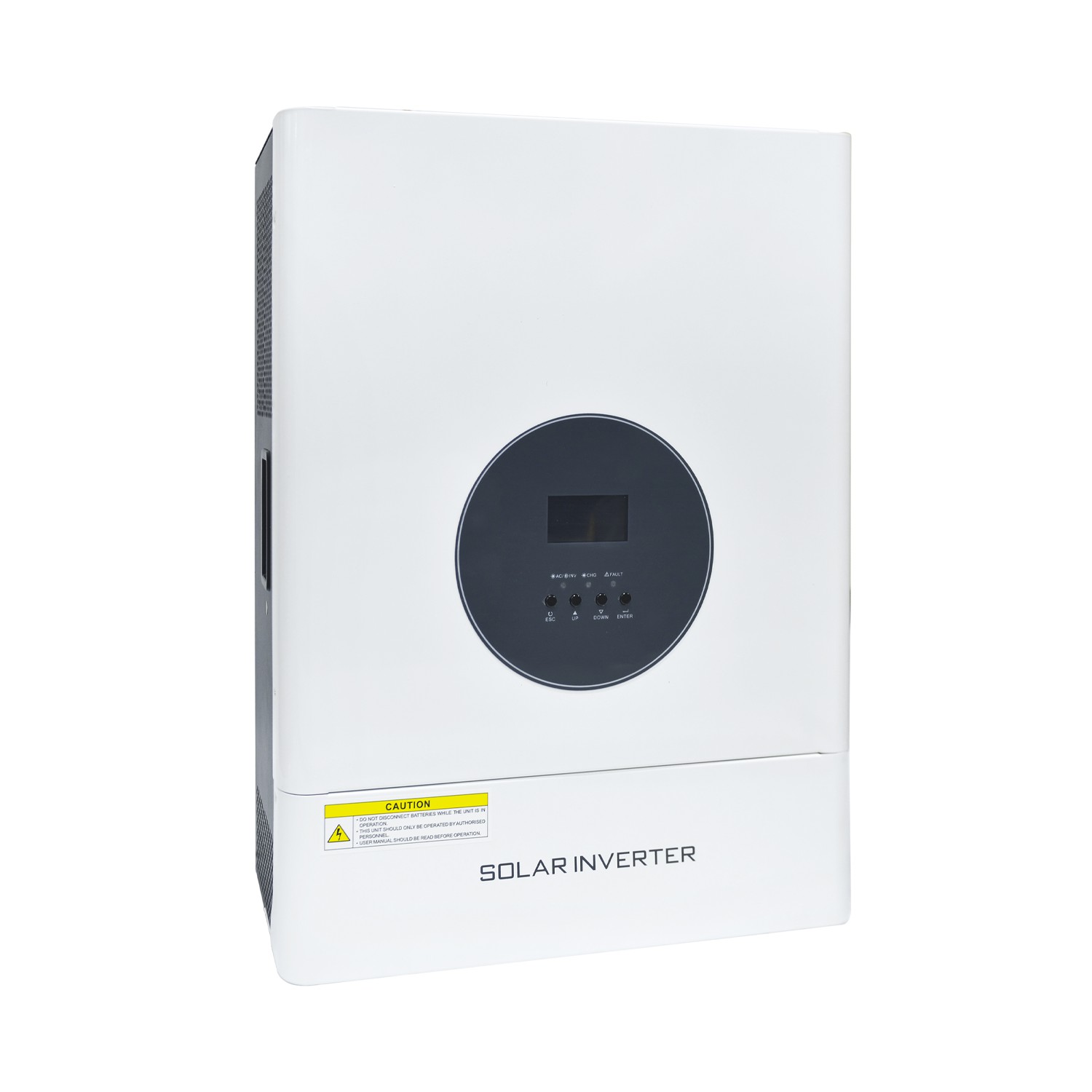

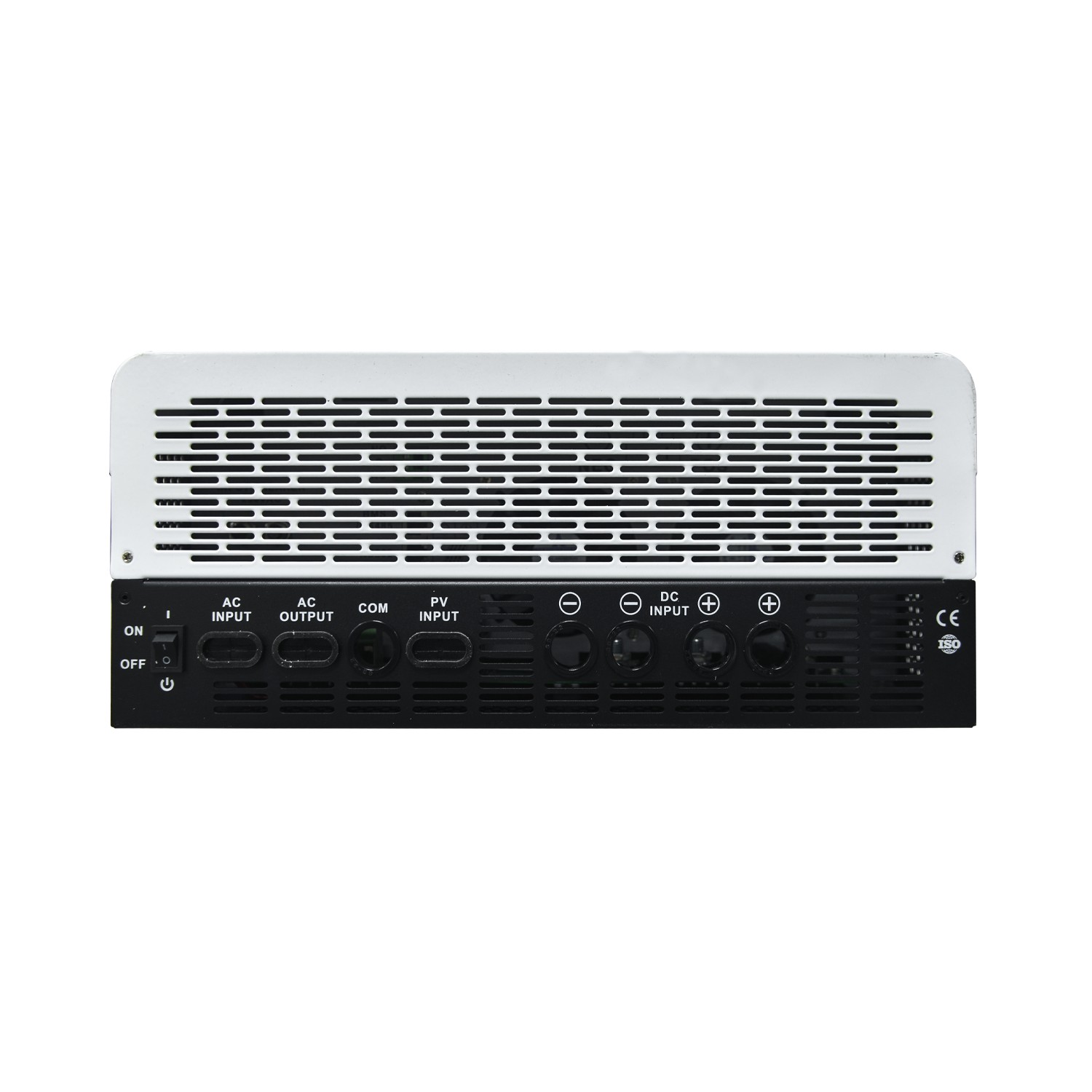

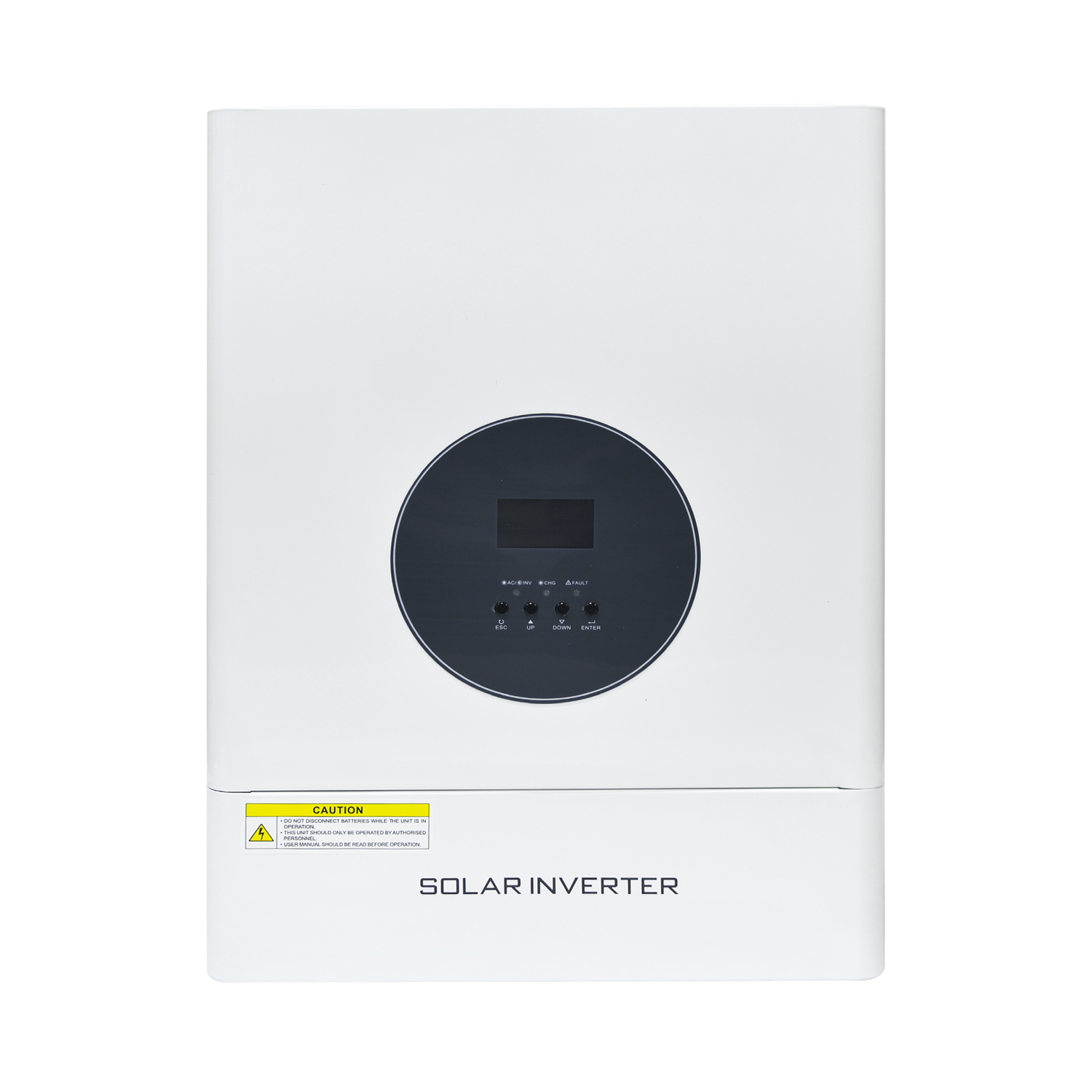

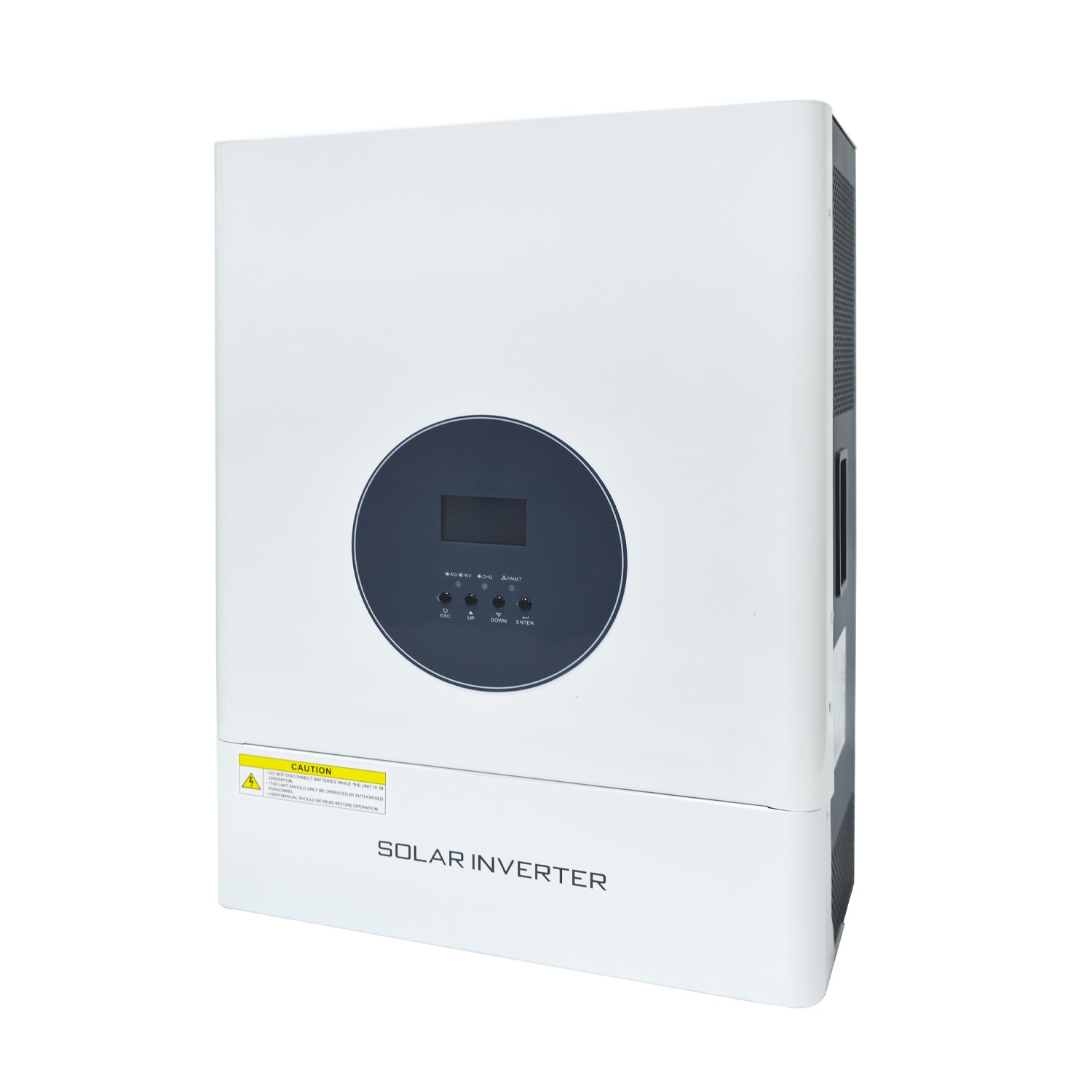

5000W-10000W SOLAR INVERTER UD SERIES
Hybrid Solar Inverter1. Premium Energy Efficiency & Output Quality
2. Advanced Safety & Reliability
3. Customization & Intelligent Control
4. Solar & Scalable Integration
Hybrid Solar Inverter
Designed specifically for industrial and commercial use as well as large off-grid energy storage systems, with a rated power of 5kW - 10kW, it supports a 230VAC output and is suitable for high-power loads. The input voltage ranges from 90 to 275VAC (170 to 275VAC in UPS mode), is compatible with global power grids, and adapts to 50/60Hz. It adopts MPPT intelligent charging technology, with a maximum photovoltaic input of 5400W (for model 12548), and a conversion efficiency of up to 98%. It provides a pure sine wave output, is compatible with sensitive equipment, and supports seamless switching between battery inverter and mains power (≤20ms).
Hybrid solar inverters boast dual PV inputs and dual AC outputs, ensuring the stability of the load. With WIFI Communication, remote monitoring of the inverter's operating status via a terminal device is made possible, guaranteeing the smooth operation of the entire system. These inverters also feature a newly developed LCD display with a Touch button function, enhancing user convenience and exuding a more premium appearance. Boasting a maximum power of up to 5KW-10KW, they are equipped with advanced electronic components and cutting-edge control technology. This enables efficient power conversion and stable power output, meeting higher power demands. Thus, they serve as the perfect solution for off-grid standby power supply for families and small businesses.
- Parameters
Designed specifically for industrial and commercial use as well as large off-grid energy storage systems, with a rated power of 5kW - 10kW, it supports a 230VAC output and is suitable for high-power loads. The input voltage ranges from 90 to 275VAC (170 to 275VAC in UPS mode), is compatible with global power grids, and adapts to 50/60Hz. It adopts MPPT intelligent charging technology, with a maximum photovoltaic input of 5400W (for model 12548), and a conversion efficiency of up to 98%. It provides a pure sine wave output, is compatible with sensitive equipment, and supports seamless switching between battery inverter and mains power (≤20ms).
Hybrid solar inverters boast dual PV inputs and dual AC outputs, ensuring the stability of the load. With WIFI Communication, remote monitoring of the inverter's operating status via a terminal device is made possible, guaranteeing the smooth operation of the entire system. These inverters also feature a newly developed LCD display with a Touch button function, enhancing user convenience and exuding a more premium appearance. Boasting a maximum power of up to 5KW-10KW, they are equipped with advanced electronic components and cutting-edge control technology. This enables efficient power conversion and stable power output, meeting higher power demands. Thus, they serve as the perfect solution for off-grid standby power supply for families and small businesses.

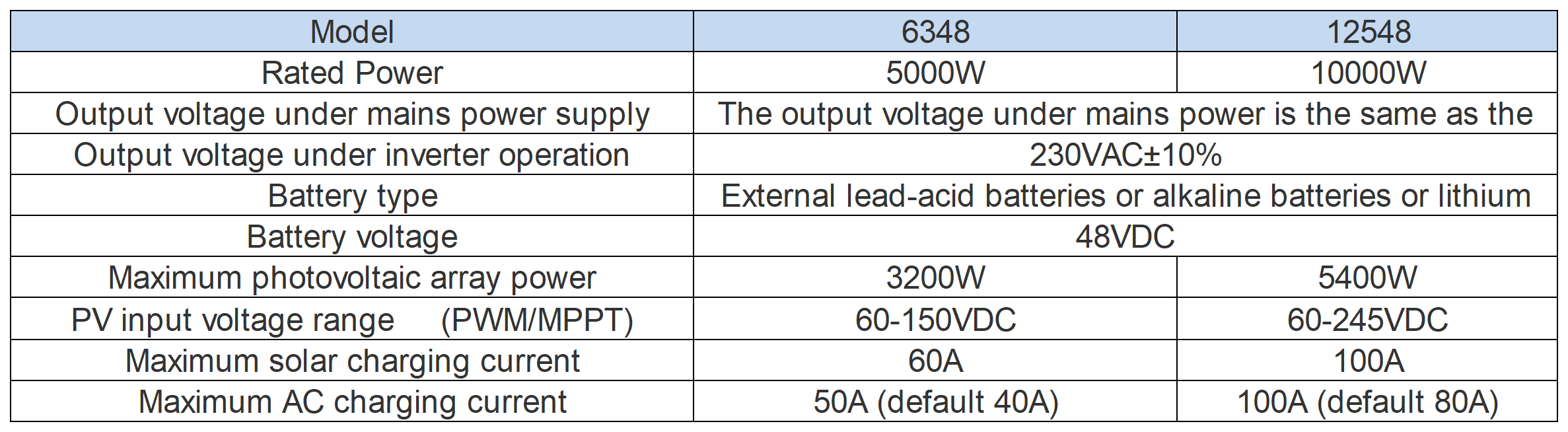

5KW-10KW Hybrid Solar Inverter Parameter
Advantages of 5KW-10KW Hybrid Solar Inverter

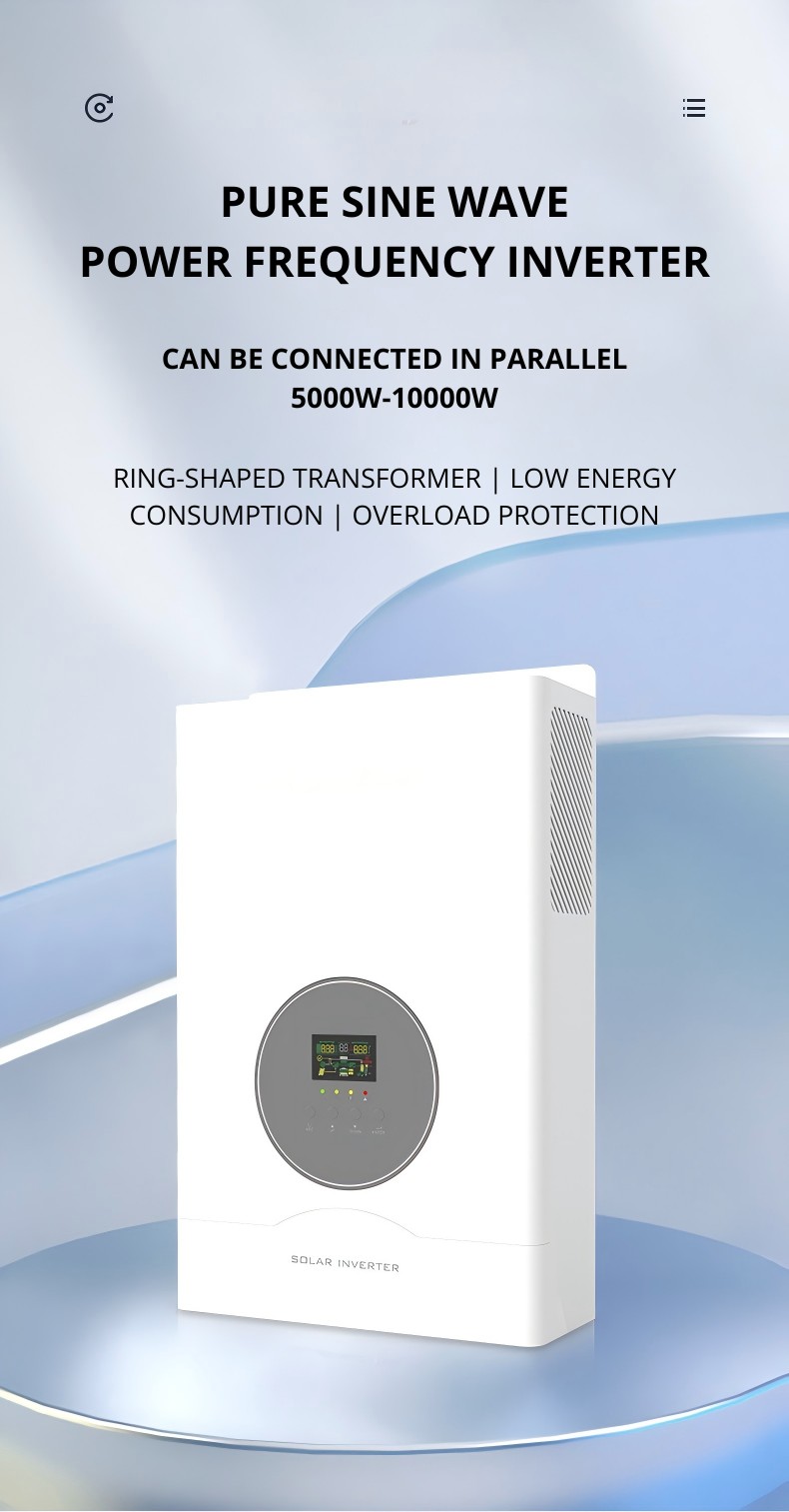

• The no-load loss is low, less than half of that of the high-frequency machine with the same power.

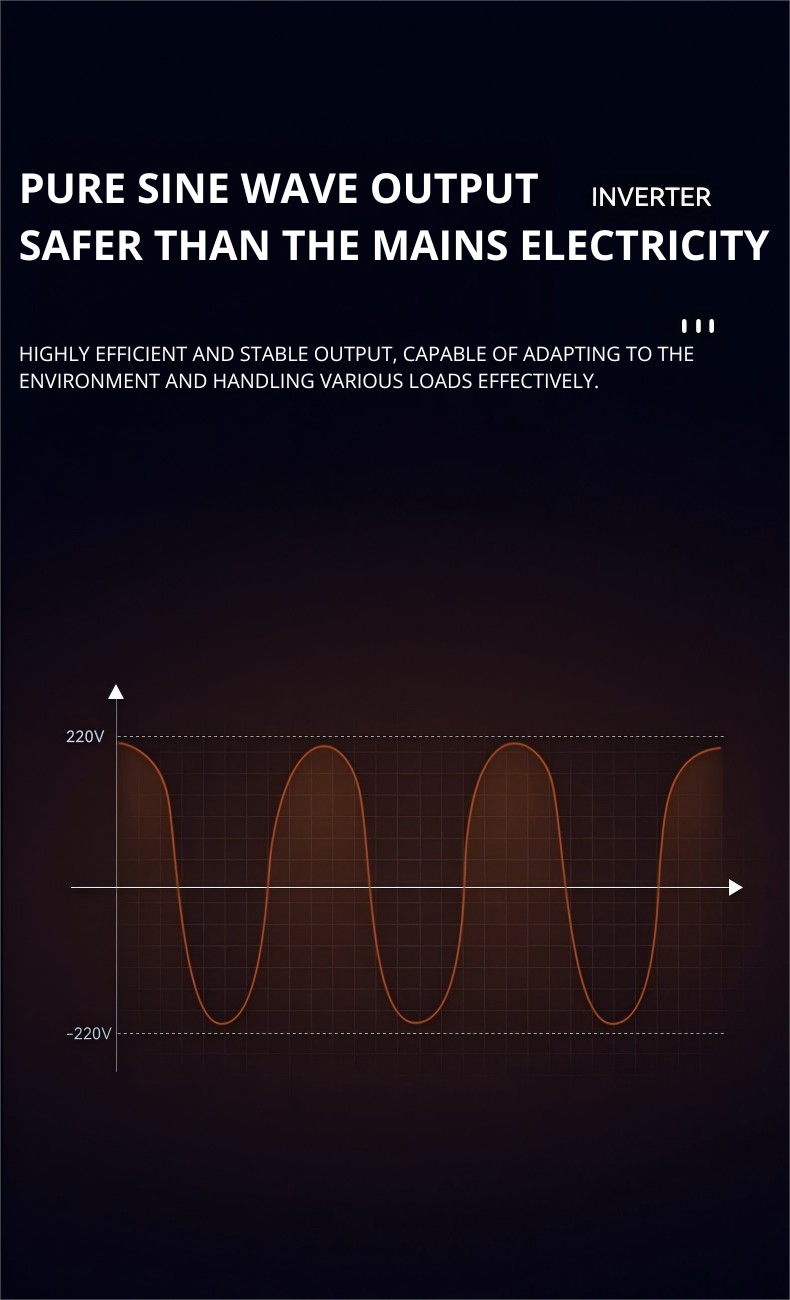

• Pure sine wave output, suitable for various loads.
• Output short-circuit protection function.
• Multiple parameters can be adjusted according to user needs.
• Solar controller with PWM/MPPT can be selected.
• BMS communication function can be selected.
• RS485 communication function can be selected.
